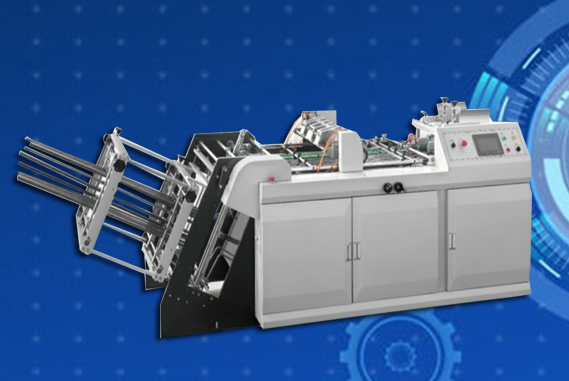

Carton Erecting Machine
| Model | A1-CEM |
| Speed | 100-150pcs |
| Welding Method | Water-Glue System Weling: ( all machines equipped water glue System )(Food grade glue , POLYVINYL-ACETATE EMULSION) |
| Available Material | 150-600gsm 150-600gsm board,paperboard,paper,corrugated cardboard,Fluted paper etc.... |
| Material Thickness | Max.1.5mm |
| paper size | *L=Length:120-450mm *W=Width:120-580mm *H=height:10-200mm *Angle:50-300 |
| Power | 5KW |
| Power Source | 3-phase,380V,50/60Hz |
| Machine Size(L*W*H) | 3520x1510x1420mm |
| Pack Size | 3550x1510x1700mm |
| Weight | 2000KG |
| Air Source | Pressure:6KG/cm2;(0.6MPa);Out-put:200L/min;(0.2-0.4m3/min);User Need To Buy Air Compressor |
